24 volt 250 watt output electric scooter and bike motor. Comes with 9 Tooth only fits #410 bicycle chains.
Note: This electric motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires (reversing the polarity to the motor).

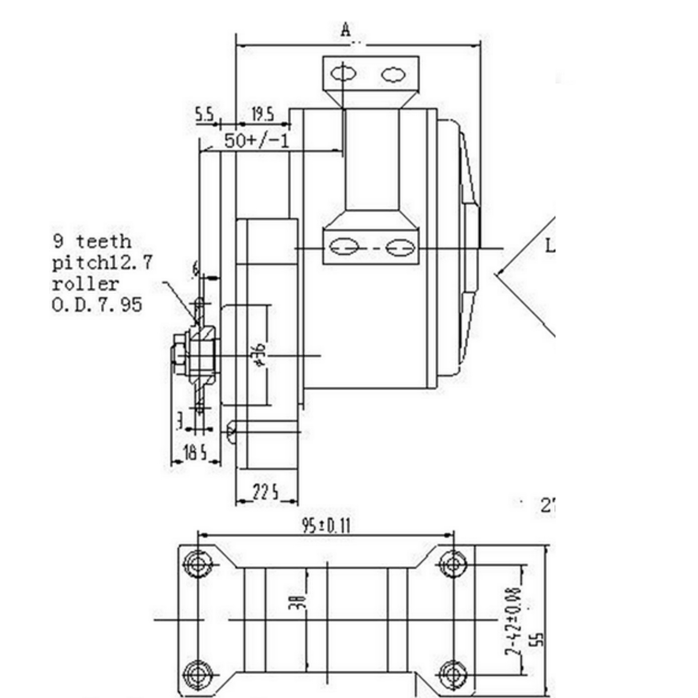

For Chain Size: Pitch 0.5in; Roller Diameter 0.3in; Roller Width 0.16in
Power output - 250 W / 24 V
RPM - 300 (after gearbox reduction)
Full load current - 13.4 A ; No-load current - 2.2 A
Torque Stall - 240 kgcm ; constant torque - 80 kgcm
Weight: 2.5 kg

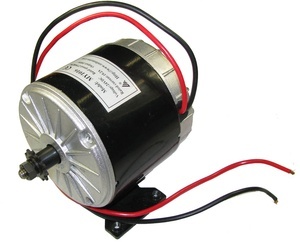

We understands the inventive mind and the thrill of creating something all your own. That is why we are proud to present the 24 volt 350 watt MY1016Z3 gear reduction motor complete with a 9 tooth 1/8" bicycle chain sprocket.
This motor is great for those wanting to make their own custom electric vehicle, whether it's a scooter, electric bicycle or something the world isn't even ready for. This electric motor with gear reduction produces more low-end torque than your standard motor.
Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.
Voltage: 24 volts DC
Output: 350 watt
Rated Speed (after Reduction): 300 RPM

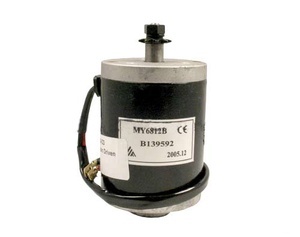

Voltage : 12V
Rated Power : 100W
No load current : less than 0.55A
No load seed : 3500rpm
Rate torque : 0.35N.m
Rate speed : 2800rpm
Rate current : less than 6.0A
Efficiency : greater than 68%
Shaft diameter: 8 mm (milled groove one-sided 1 mm)
Weight: 1.3 kg

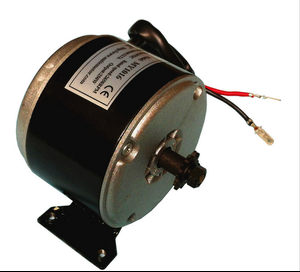

Rated output Power 250W
Rated Voltage 24V DC
Rated speed 3000RPM
No load speed 3850RPM
Full load Current ≤13.4A
No load Current ≤2.2A
Rated Torque 0.80N.m
Efficiency ≥78%
Application Light E.V./ E-bike
Rated output Power 350W
Rated Voltage 24/36V DC
Rated speed 2250 RPM
No load speed 2700RPM
Full load Current ≤18.70A/12.50A
No load Current ≤2.5/2.0A
Rated Torque 1.5 N.m
Efficiency ≥78%
Application Light E.V./ E-scooter

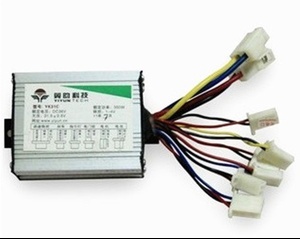

Available for 250W and 350W motor.
Includes attachments for motor, accelerator, brake, battery, battery charging, brake light, power lock.
